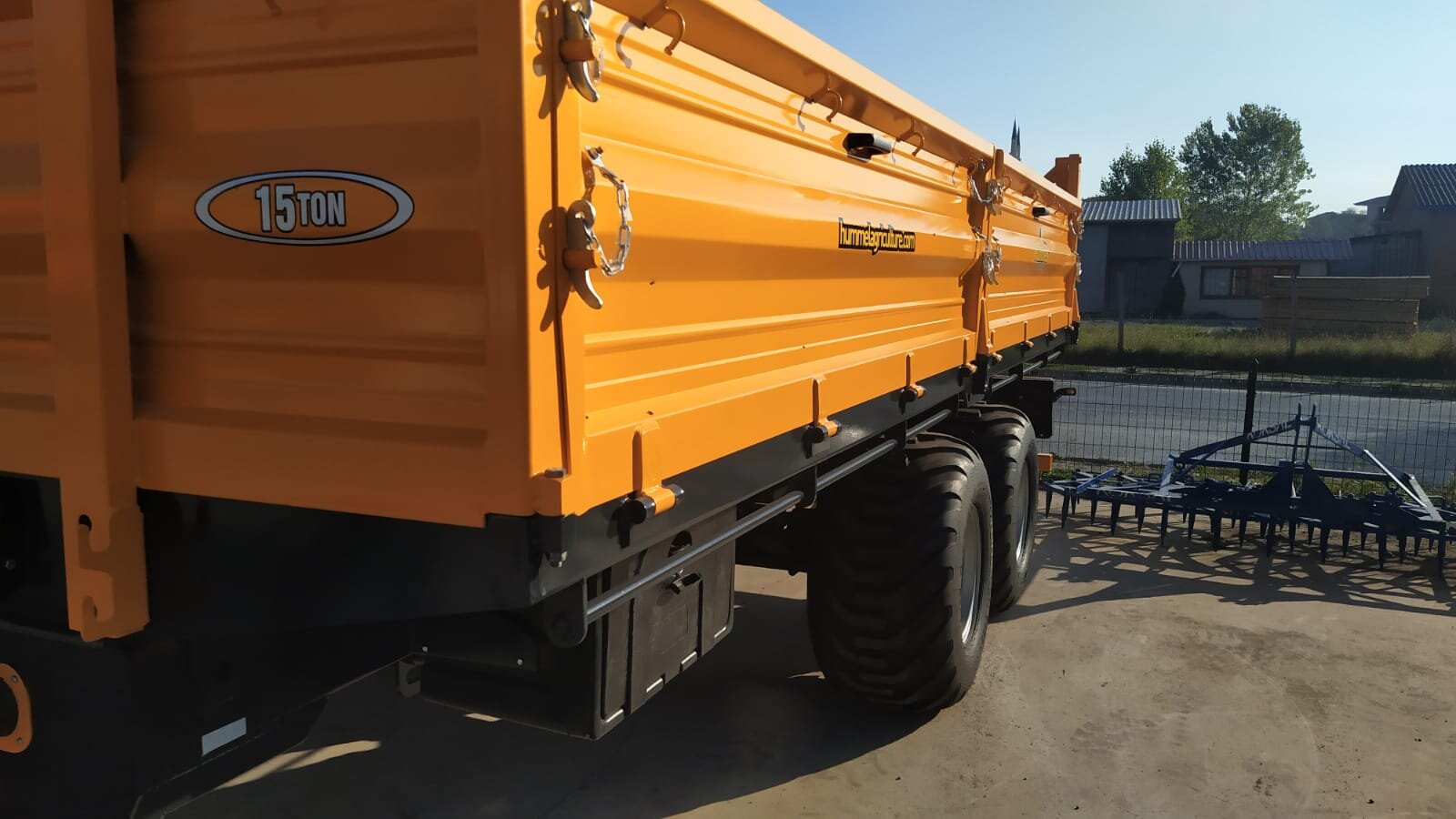

Hummel RM 44150/I - 15 tonne dropside trailer

This trailer was constructed in Turkey to our specifications, for NZ conditions. It is due in NZ around July 2022. Hummel 15 tonne double axle dropside tipping trailer with 600mm high sides. Manufactured in Turkey to European standards and specially constructed at the factory for NZ conditions. All the “extras” provided by other manufacturers are included with this trailer! Check the specifications and compare the value for money that this trailer offers.

Factory fitted extras include the following:

• Hydraulic brakes on all four wheels

• Sprung drawbar

• Hand brake

• Wheel chocks to totally secure the trailer on a slope

• Swivel tow eye

• Deck prop to keep deck safely raised

• Folding step on the front to enable easy access to the trailer

• Lights that are fully guarded and inside a channel

• Hydraulic towbar jack to adjust drawbar height for connecting

• Tool box for holding load straps, chains etc

• Water container and soap dispenser for hand washing when necessary

• Tail board is swung high to ensure ease of tipping bulky loads

• Drawbar pipe stand to keep hydraulic hoses away from tractor wheels

• Automatic opening of tailboard at 15 degrees elevation

• Rear towbar for pulling a second trailer

• Strong pipe under the tipping body sides for securing tie down straps

• Spreading chains fitted

The sides are two piece units on each side that fold down easily to create a flat deck trailer for carting bales or fertilizer or pallets

Model: RM 44150/I

Specifications:

Empty weight 3,100kgs

Load capacity 15,000kgs

Total allowable weight 18,100kgs

Load volume approx 6.9m3

Load space 10.9 sq m

Body length 5000mm (Inside dimension 4920mm)

Body width 2300mm (Inside dimension 2220mm)

Side height 600mm

Side thickness 2mm

Floor thickness 4mm

Deck height from ground 1150mm

Suspension Spring leaf parabolic system

Wheel track 1700mm

Wheels and tyres 500/50-17  (14 ply tyres x 4)

Brakes Hydraulic on all four wheels

Tipping angle 53 degrees

Hydraulic cylinder and sections 1 with 4 sections

Oil needed for lift ram 24 litres

Minimum tractor requirement 100hp or 74KW

Paint process- Chassis is coated with acrylic paint. All sides powder coated

Email or call for a quote.
