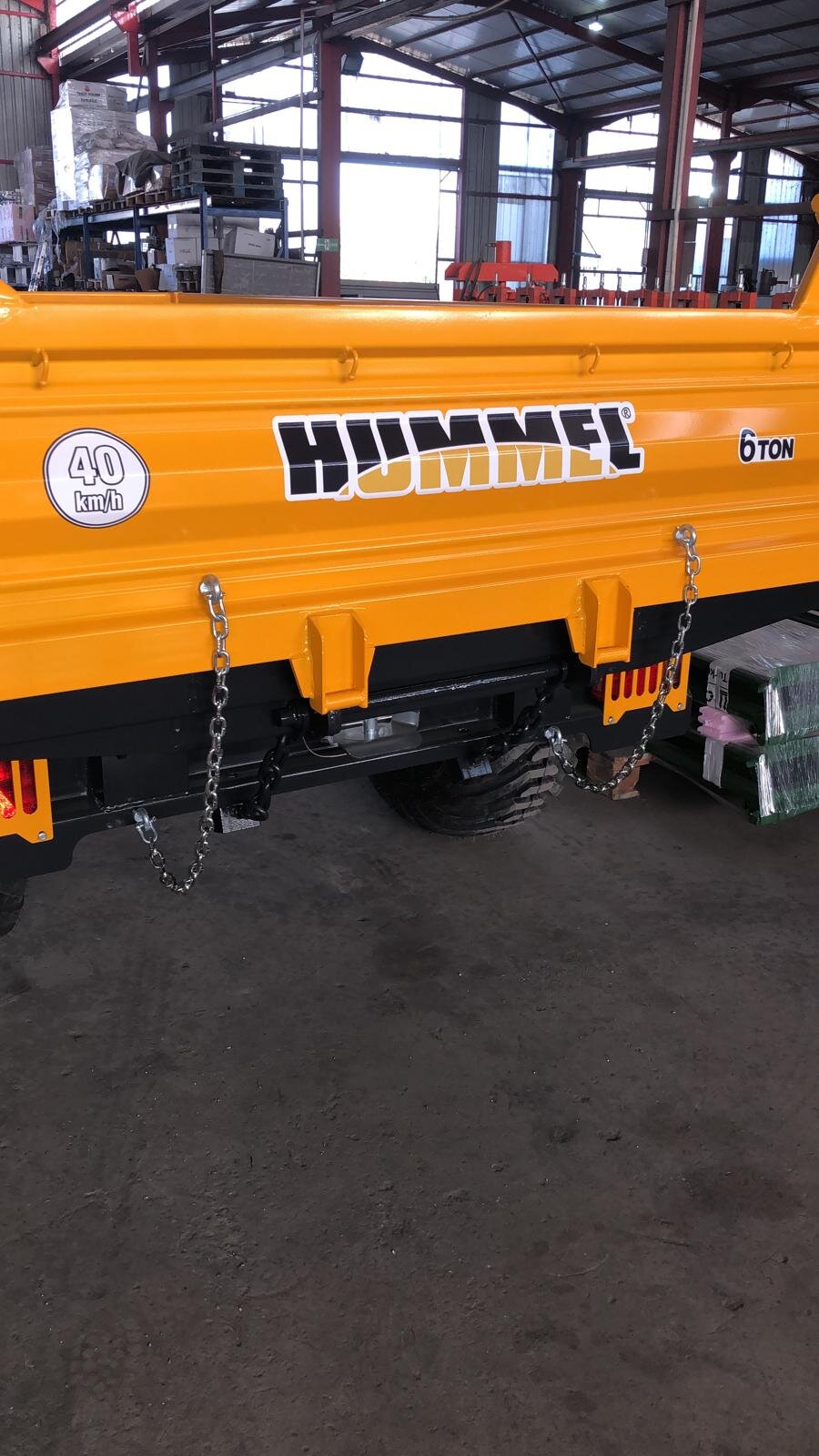

Hummel 6 tonne single axle dropside tipping trailer manufactured in Turkey to European standards and specially constructed at the factory for NZ conditions. All the “extras” provided by other manufacturers are included with this trailer! Check the specifications and compare the value for money that this trailer offers. Factory fitted extras include the following:
Hydraulic brakes
Hand brake
Wheel chocks to totally secure the trailer on a slope
Swivel tow eye
Deck prop to safely work while the deck is raised
Lights fully guarded and inside a channel
Hydraulic towbar landing leg to adjust drawbar height for connecting. (Requires a pair of double acting hydraulic outlets on the tractor to operate)
OR, we can fit an optional manually operated towbar jack which has a sliding insert to lift the foot well clear of the ground. No moving the jack from lifting position to transport position. It is strongly mounted with six bolts
Tow hitch at the rear for a second trailer or pulling anything else
Tool box for holding load straps, chains etc
Water container and soap dispenser for hand washing when necessary
The tail board is swung high to easily tip off bulky loads
Tail board is opened automatically as the trailer lifts to 15 degrees.
Strong pipe under the tipping body for securing tie down straps
Spreading chains fitted
Folding step on front to enable easy access to the trailer
The sides are one piece units that fold down easily to create a flat deck trailer for carting bales or fertilizer or pallets.
Model: Hummel RM1260/i
Specifications:
Empty weight 1350kgs
Load capacity 6000kgs
Total allowable weight 7350kgs
Load volume approx 3.4m3
Body length 3700mm
Body width 2000mm
Side height 500mm
Side thickness 2mm
Floor thickness 3mm
Deck height from ground 900mm
Wheel track 1600mm
Wheels and tyres 400/60-15.5 (14ply tyres x 2)
Tipping angle 48 degrees
Spreading chains fitted.
Paint process: Chassis is coated with acrylic paint. All sides powder coated
Viewing and a demonstration is welcomed. Email or call for a quote.
